How to install the folding mirror for Land Rover ?

Instrution for Installing the Land Rover folding mirror 1 Prepare tools

2 Withdraw door panel trim



3 Withdraw total 5 pcs screws on the door panel



4Take off door panel,the key cables ,then take off the plug



5 Take off rear mirror assembly



6Take off  the mirror regulator with T10 tool



 7Withdraw the mirror regulator basic mount and all the screw

 8Take off  the rear mirror cover

 9Take off the screw after withdrawing the rear mirror cover.

 10Upward the buckle after separating the frame and rear mirroring cover

11Separation effect diagram

12Follow the arrow direction to open up the iron tube with tool, devide the plastic part and basic mount.



13Effect picture after installing the folding plastic part.



14Recver the rear mirror, connect the motor male and female plug



15Picture show driver door panel ,the White LIN cable(#16) connect to original car door panel #16 plug which under the subwoofer



16Take off the harness box which local in driver door side



17Run the motor cable (white ,green,blue.) to the harness box



18 3 pcs female plug connect to original car module ,make sure its connected with corresponded Male Number



 19 Be attention that no cables outside and no cables was under pressed

20 Withdraw total 3 pcs screws

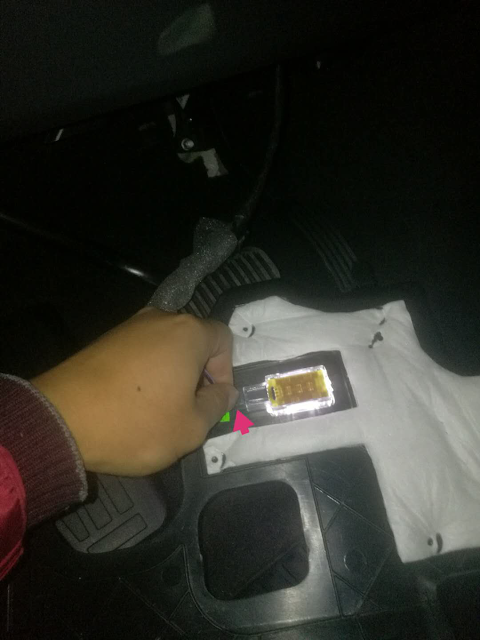

21Take out the lamp.

22 Take off the engine cover switch screw



23 Take out the plastic cover



24 Take off the original car module and take out the cover



25 Take out the blue color plastic cover



26 OBD module’s male terminal must be connect as above picture showed.(connect the Corresponding color



27 Take out original car OBD module with screw .



28 Switch original car OBD to our OBD



29 Plug to module, make sure it connect well .



30 Module install under the cushion of left side .



 31 Devide two copilot door cables , connect the

32 PIN definition diagram





For 2016 version OBD :

Module #1---OBD#16(12V)

Module #2---OBD#3(CAN/H)

Module #3---OBD#11(CAN/L)

Module #10---OBD#4(GND)

Module #12--Spread power out (12V)

Module #14--Folding power out (12V)

Module #8--Door Plug assembly #16

For 2017 version OBD :

Module #1---OBD#16(12V)

Module #2---OBD#1(CAN/H)

Module #3---OBD#9(CAN/L)

Module #10---OBD#4(GND)

Module #12--Spread power out (12V)

Module #14--Folding power out (12V)

Module #8--Door Plug assembly #16
