 How to install new type LED airvent in Mercedes-Benz W464 G class

1 Remove upper cover

2Remove below cover

3 Remove 3pcs screws

4 Disconnect plug take off cluster

5 Remove 6 pcs screws

6 Remove 2 pcs screws upper the AC outlet

7 Take off driver side console cover

8 Remove 1 screw

9 Remove cover

10 Same way for right side console cover

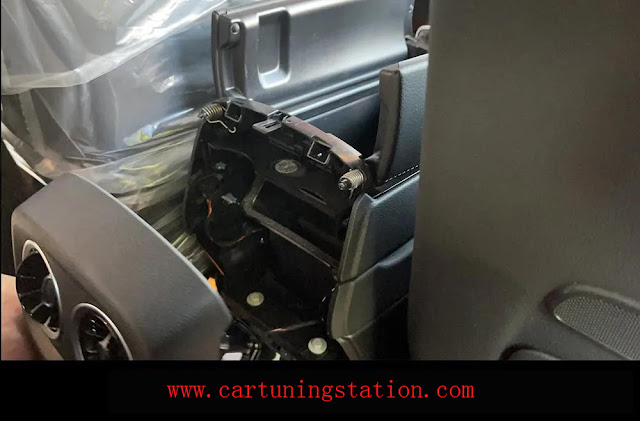

11 Take off rear airvent cover

12 Remove screws

13 Remove center console

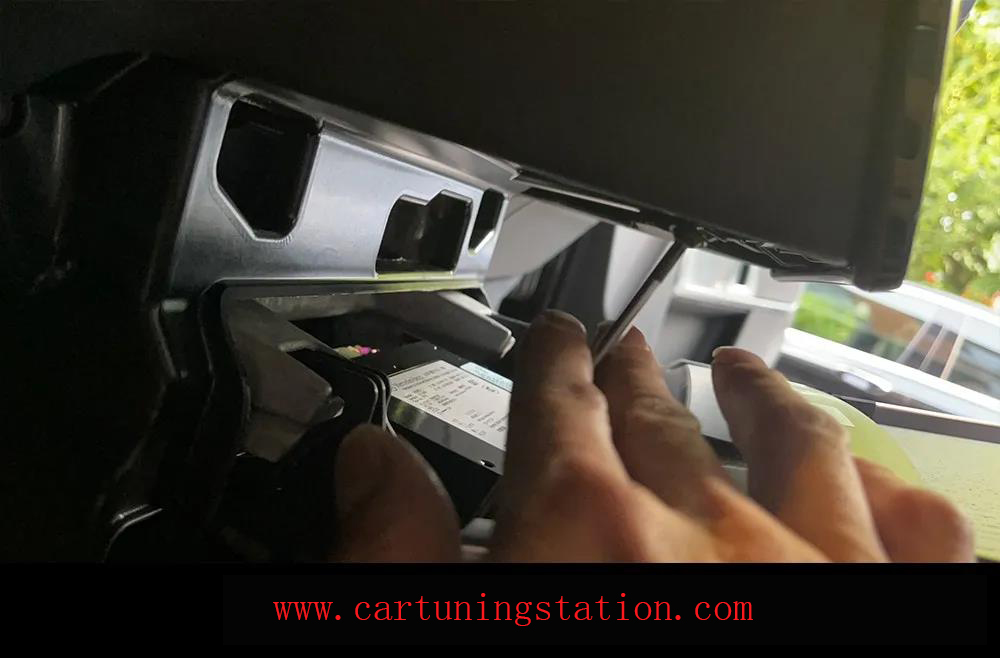

14 Remove screws under the center dashboard

15 Take off the dashboard

16 Remove the silver cover

17 Remove screw,disassemble AC outlet and cover

18 Take off original snap and install to LED airvent

19 Recover AC airvent

20 Switch feetlamp cable get power

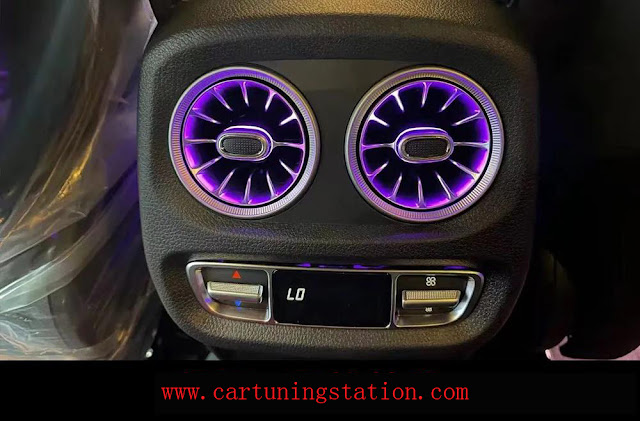

21 Effction picture

For more detail welcome contact us by email:info@cartuningstation.com

How to install the airplane type Turbo LED airvent in Mercedes-Benz W213 E class

How to install the airplane type Turbo LED airvent in Mercedes-Benz W213 E class

                      Note:W205 X253 diagram same with this.please read step 10

1 Open center cover

2 Remove 3 pcs screws

3 Disconnect the harness behind the Cluster,remove Cluster

4 Remove the side plastic fuse cover.take off the whole AC outlet

5 Replace original AC outlet by ours,connect LED connector and run cable to center dashboard.

(Be attention that TOP icon upwards)

6  Installed the driver side AC led airvent as step5

7 Remove the dashboard screws to replace original AC outlet by ours

8 Connect LED airvent cables and recover dashboard to car

9 Switch cables with original door plug in module #6 --Blue color one.

10.Digram picture

For W205 C calss  X253 GLC installation same way ,same swich cable from here.More detail welcome contact us info@cartuningstation.com
